LN-5Z(不锈钢带) 防水阻燃型可挠金属电线保护套管
LN—5Z(不锈钢带)防水阻燃型可挠金属电线保护套管
LN一5Z(NCr)Water Proof＆Prevent Burning Type

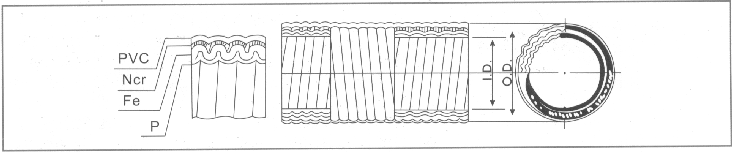

LN-5Z(不锈钢带)防水阻燃型可挠金属电线保护套管，其结构规格与LN—5相同，PVC用优质耐温阻燃级，防火性能强。适用于室内外潮湿防火要求较高的电力导线配管，用干桥梁、隧道、造船、电厂、高档建筑等的明、暗预埋和直埋的配管，更可替代地面线槽布线用管等。
LN-5Z (Ncr) and waterproof casing flame retardant protection Prica metal wires. LN-5 compliance with the same structure, temperature flame retardant PVC quality level, strength of fire,apply to indoor and outdoor fire damp demand for a higher power distribution control cable for bridges tunnels, shipbuilding plant that the high-grade construction, and buried secretly embedded in the piping wiring can be replaced with ground trough, etc
LN一5Z规格表Standard Dimensions of LN—5Z PRICA PIPE
|
规格
Catalogue
Number
|
内径
I．D。
|
外径
O．D．
|
外径公差
O．D．
Tolerance
|
乙烯层厚度
ThicknessOf
PVC(min)
|
每卷长
Length／roll
|
钢管对应规格
Relevant Conduit
|
电线管对应规格
Relevant Conduit for
ElectricWire
|
||
|
|
mm
|
mm
|
mm
|
mm
|
m
|
mm
|
|
mm
|
|
|
12#
|
11.4
|
17.7
|
±0．2
|
0．6
|
50
|
8
|
1／4＂
|
13
|
1／2＂
|
|
15#
|
14.1
|
20.6
|
±0．2
|
0．6
|
50
|
10
|
3／8＂
|
16
|
5／8＂
|
|
17#
|
16.6
|
23.1
|
±0．2
|
0．6
|
50
|
15
|
1／2＂
|
19
|
3／4＂
|
|
24#
|
23.8
|
30.4
|
±0．2
|
0．6
|
25
|
20
|
3／4＂
|
25
|
1＂
|
|
30#
|
29.3
|
36.5
|
±0．2
|
0．6
|
25
|
25
|
1 ＂
|
32
|
11／4＂
|
|
38#
|
37.1
|
44.9
|
±0．4
|
0．6
|
25
|
32
|
11／4＂
|
38
|
11/2＂
|
|
50#
|
49.1
|
56.9
|
±0．4
|
0．8
|
25
|
40
|
11／2”
|
51
|
2＂
|
|
63#
|
62.6
|
71.5
|
±0．6
|
0．8
|
10
|
50
|
2＂
|
64
|
21/2＂
|
|
76#
|
76.0
|
85.3
|
±0．6
|
0．8
|
10
|
70
|
21／2＂
|
76
|
3＂
|
|
83#
|
81.0
|
90.9
|
±0．8
|
1．0
|
10
|
80
|
3＂
|
|
|
|
101#
|
100.2
|
110.1
|
±0．8
|
1．0
|
5
|
100
|
4＂
|
|
|
·
按JG/T3053-1998标准
套管12#、15#、17#每卷许有两个接头(三根)，短头部分最低限度不能少于8M。30#、38#、50#每卷允许有一个接头(二根)，短头部分最低限度不能少于5M。2、可挠金属电线保护套管与钢管依据内径尺寸对应。
Standards by JG/T3053-1998
1．casing 12#，15#．NO．170utburst allowed per two joints(3)A short，the first part at least should not be less than 8M.24#，30#，38#，50#peraIlow a joint (KAN)short head at least part of not less than 5M．2．Prica metal casing to protect wiring in accordance with the diameter of pipe size counterparts．
