10，防水型45°弯角混合连接器
Angle Box Connetors For Water Proof (W45AG)

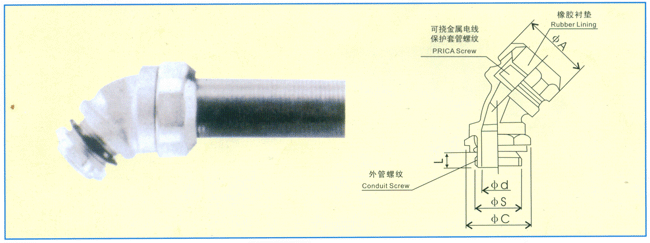

结构
由多个配件组合而成的复合连接器，一端为管螺纹一端为可挠金属电线保护套管内螺纹。材质为锌铝合金,表面镀铬。
用途
用于连接45°角的包塑防水型可挠金属电线保护套管与防水接线箱之间的连接
Structure
Many parts of the compound by a combination of connectors，end to end to foreign Prica tube threaded screw Material for zinc-aluminum alloy，chrome-plated．
Uses
The angle Of 45°for connecting packet-Prica waterproof plastic tube connecting with waterproo fconnection between the box.
10)防水型45°弯角混合连接器规格表
|
型号
CataIogue
|
可挠金属套管规格
PRICA Connetion Size
|
L
mm
|
φA
mm
|
φC
mm
|
φd
mm
|
φS
mm
|
管螺纹
Conduit
Screws
|
|
W45AG—15
|
15#
|
12
|
37
|
32
|
14
|
20．5
|
G1／2＂
|
|
W45AG-17
|
17#
|
12
|
37
|
32
|
14
|
20．5
|
G1／2＂
|
|
W45AG-24
|
24#
|
12
|
47
|
43
|
20
|
26．1
|
G3／4＂
|
|
W45AG-30
|
30#
|
12
|
53
|
48
|
26
|
32．7
|
G1 "
|
|
W45AG-38
|
38#
|
16
|
63
|
54
|
33
|
41．0
|
G11／4＂
|
|
W45AG-50
|
50#
|
18
|
78
|
62
|
40
|
47．0
|
G11／2＂
|
|
W45AG-63
|
63#
|
18
|
92
|
78
|
52
|
59．4
|
G2＂
|
